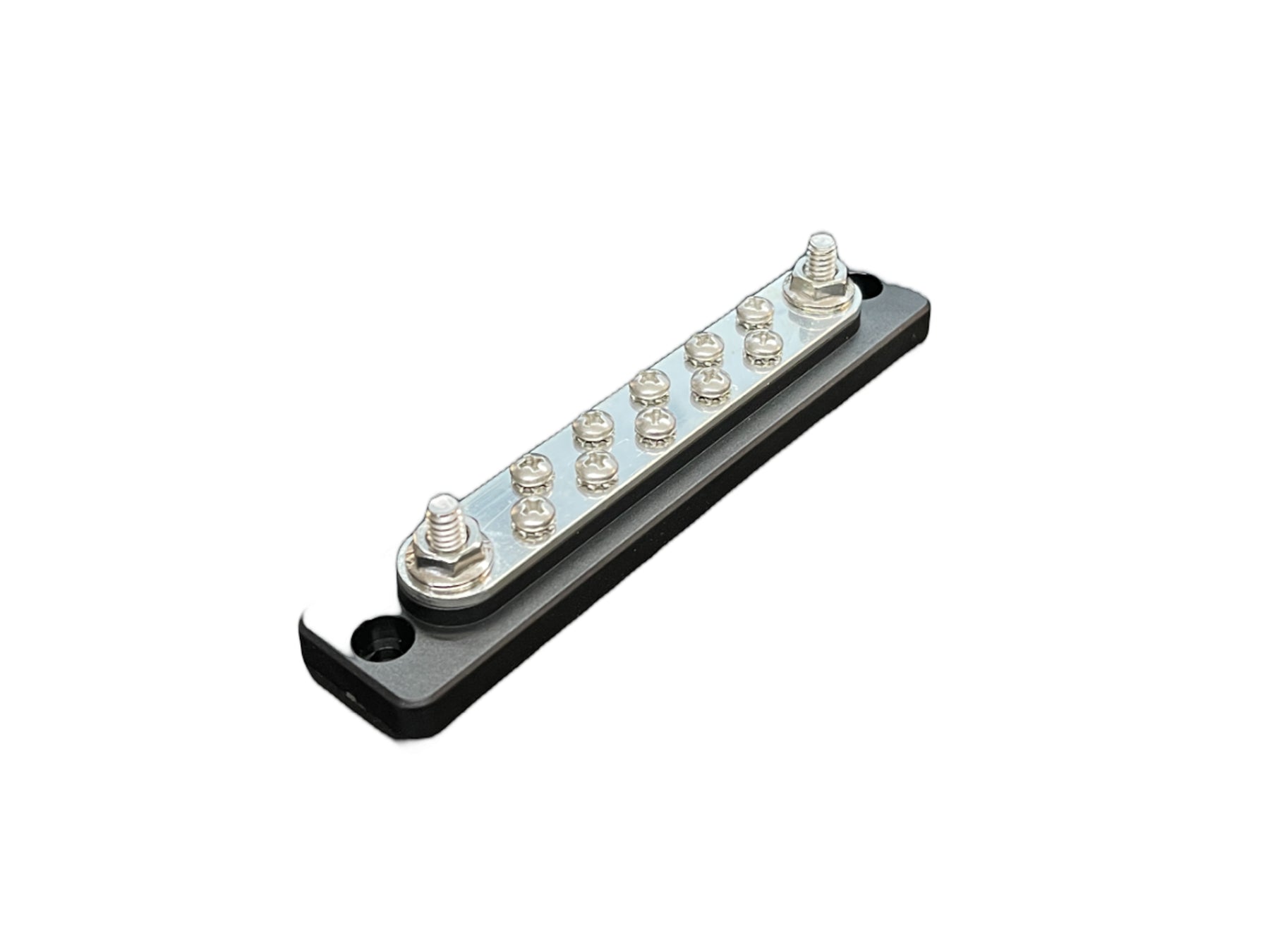

10 Terminal Bus Bar

$25.00 Sold out
Shipping calculated at checkout.
  • Rated to 100 Amps and works great for all types of power and ground distribution
  • Includes 10 #8-32 Stainless Steel Terminals and Two 1/4" Stainless Steel Studs

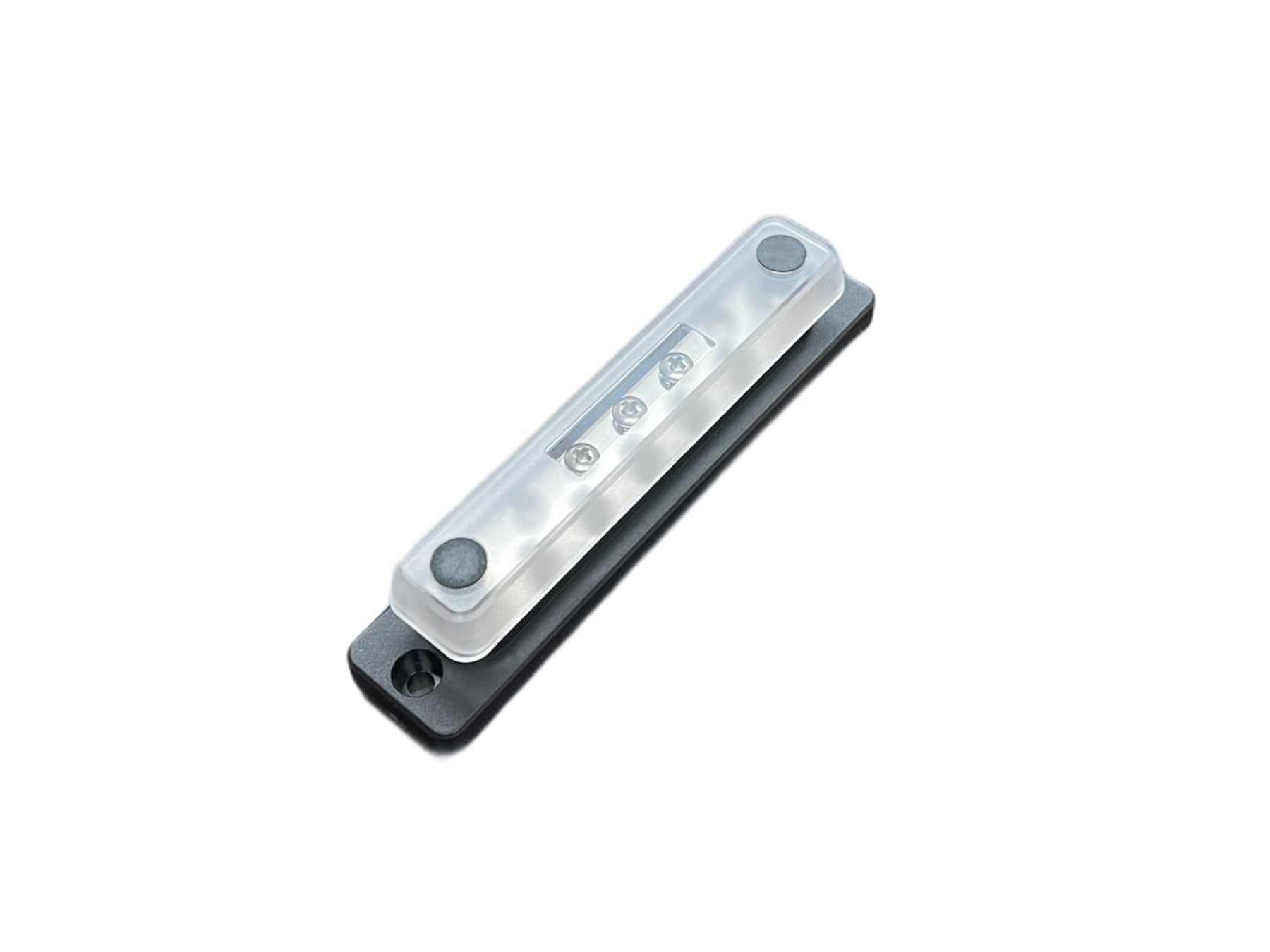

  • High quality Tin-Plated copper bus and plastic cover provides excellent resistance to harsh environment
  • Great for any 12 volt application

  • Specifications
    Maximum Voltage 300V AC
    48V DC
    Number of Screw Terminals 10
    Number of Terminal Studs 2
    Terminal Type 1/4" Stud
    #8-32 Screw
    Continuous Rating  130A AC
    150A DC
    Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
    Bus Material Tin-Plated Copper CDA 110 / UNS 11000
    Screw Terminal Torque 15 in-lb (1.69 Nm)
    Stud Torque 60 in-lb (6.78 Nm)
    Weight 0.34Lb (0.15 Kg)
    Weight 0.34lb (0.15 kg)
