ICS FAB

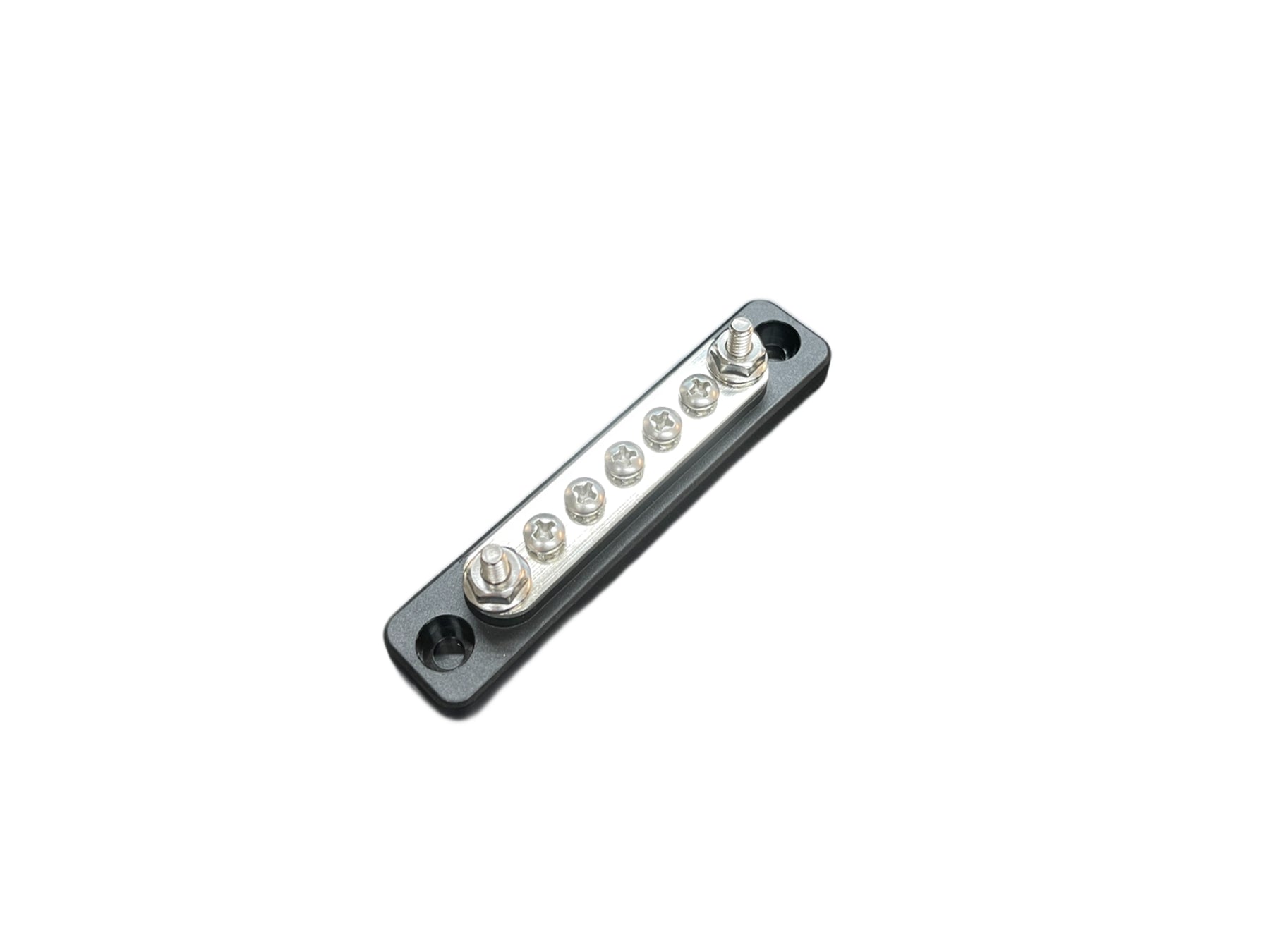

5 Terminal Bus Bar

£16.00
Shipping calculated at checkout.
  • Rated to 100 Amps and works great for all types of power and ground distribution
  • Includes Five #8-32 Stainless Steel Terminals and Two 10/32 Stainless Steel Studs

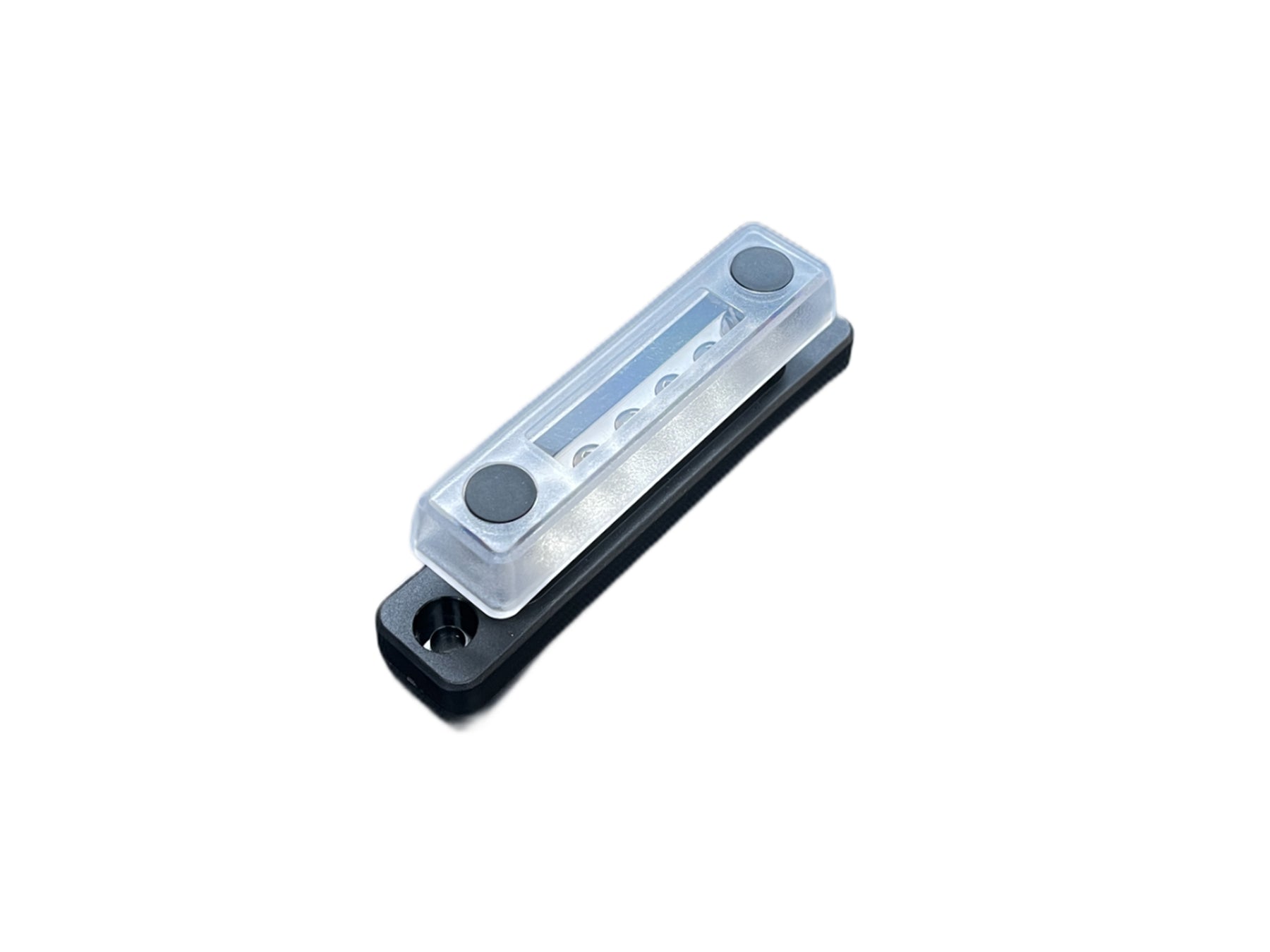

  • High quality Tin-Plated copper bus and plastic cover provides excellent resistance to harsh environment
  • Great for any 12 volt application

  • Specifications
    Maximum Voltage 300V AC
    48V DC
    Number of Screw Terminals 5
    Number of Terminal Studs 2
    Terminal Type #10-32 Stud
    #8-32 Screw
    Continuous Rating  100A
    Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
    Bus Material Tin-Plated Copper CDA 110/ UNS11000
    Screw Terminal Torque 15 in-lb (1.69 Nm)
    Stud Torque 18 in-lb (2.03 Nm)
    Weight 0.15Lb (0.07 Kg)
    Weight 0.16lb (0.07 kg)
